PX SYSTEM™

AIR

A surface worth keeping

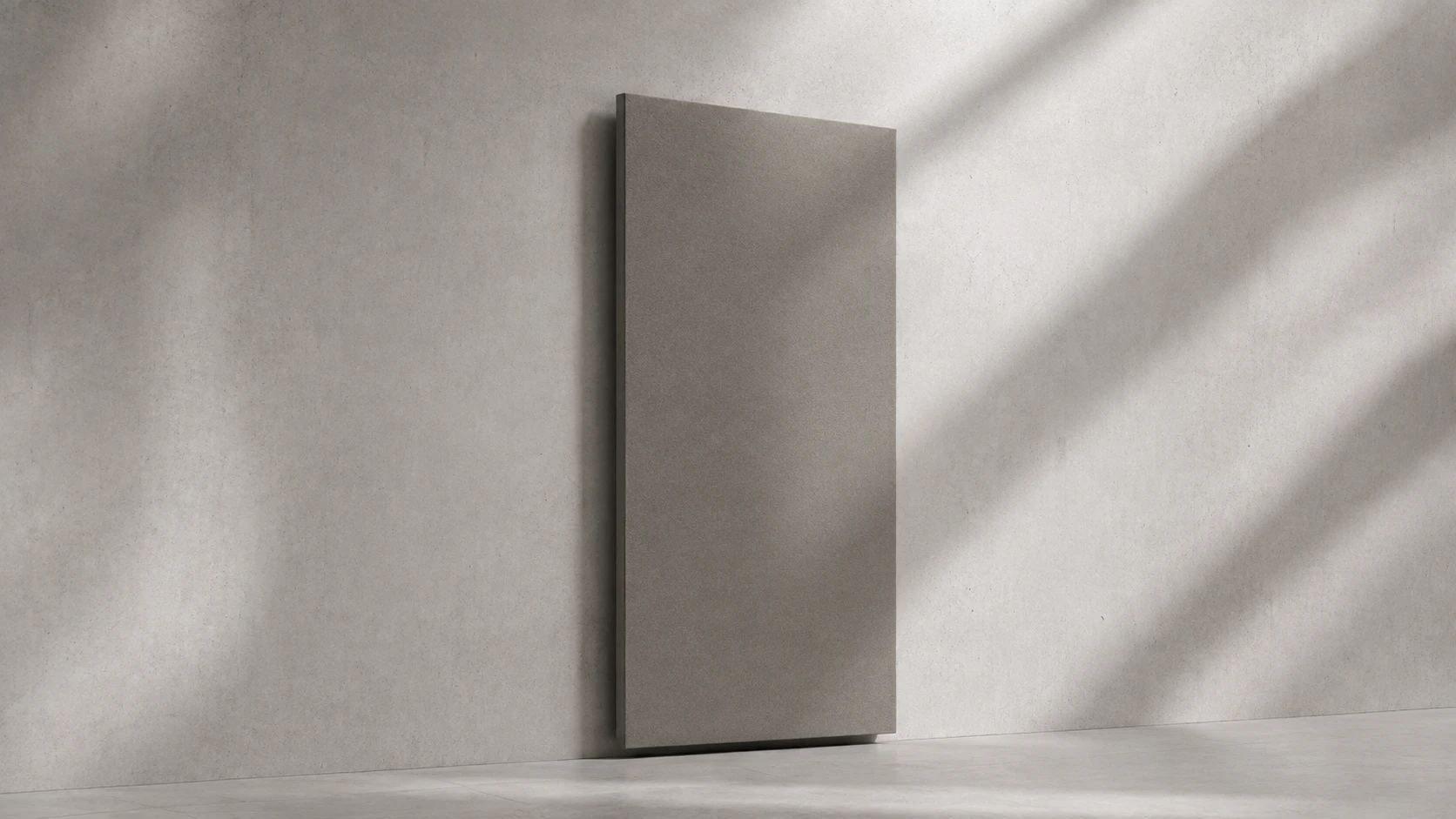

A slim acoustic panel for speech and conversation, with a textile cover you can change.

Loading 3D model

Your room
Your textile

Woven and non-woven textiles can become the face of AIR. Choose Maharam, Knoll Textiles or your preferred supplier. We confirm suitability for your project.

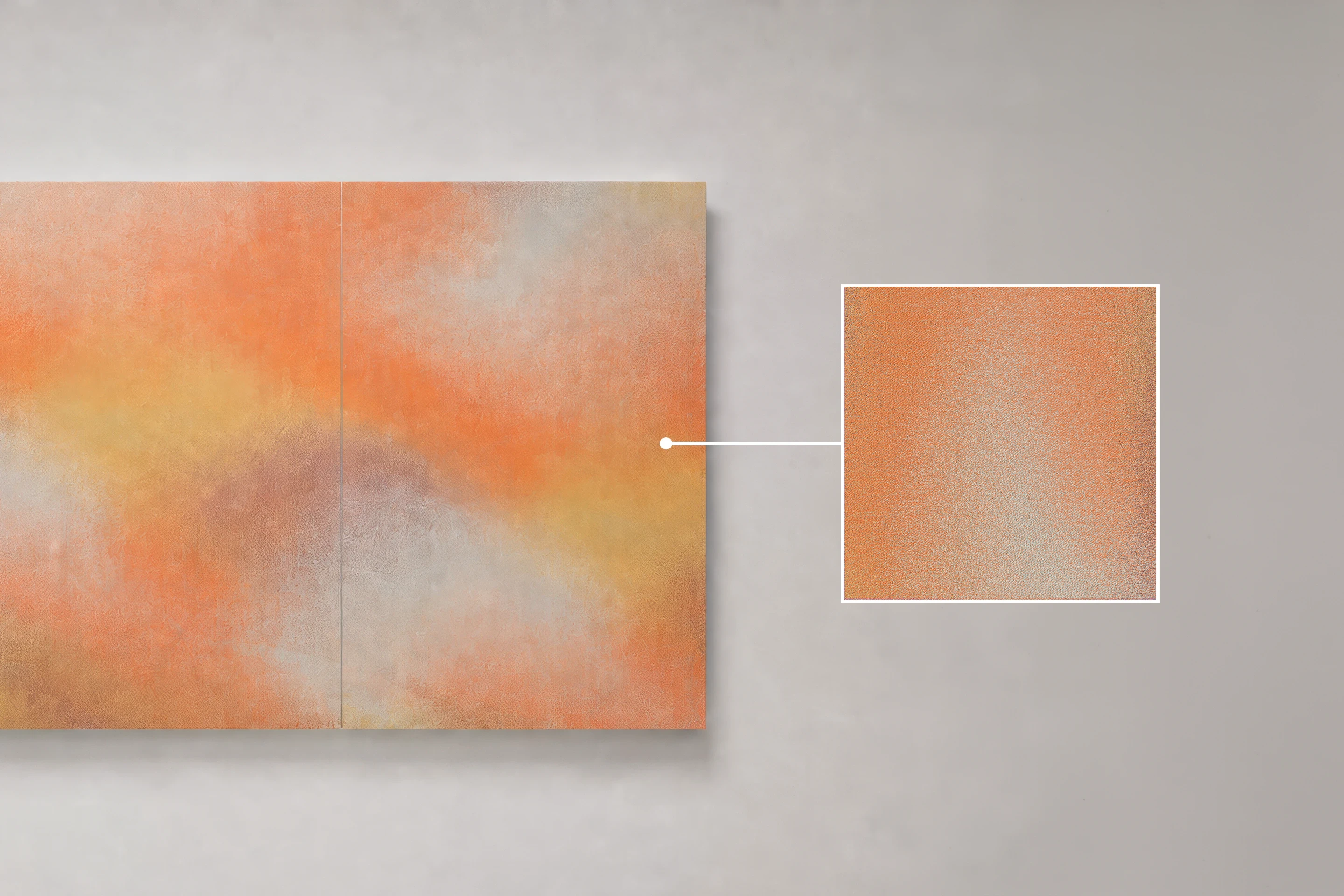

AIR in Nova by Sander Lak, a light orange patterned textile, with a weave detail — **Nova by Sander Lak**001 Quantum / 100% polyesterExplore Maharam upholstery

AIR in Ultrasuede, a grey textile, with a material detail — **Ultrasuede**026 Cement / 80% polyester, 20% polyurethaneExplore Knoll Textiles upholstery

**Ultrasuede**026 Cement / 80% polyester, 20% polyurethaneExplore Knoll Textiles upholstery

Change the fabric
Keep the panel

AIR attaches magnetically to MOUNT, the wall mount, and pulls off. A sewn perimeter cord holds the textile in the frame. Replace the cover, or clean and refit recommended textiles following their care instructions. The frame and core stay.

AIR and MOUNT

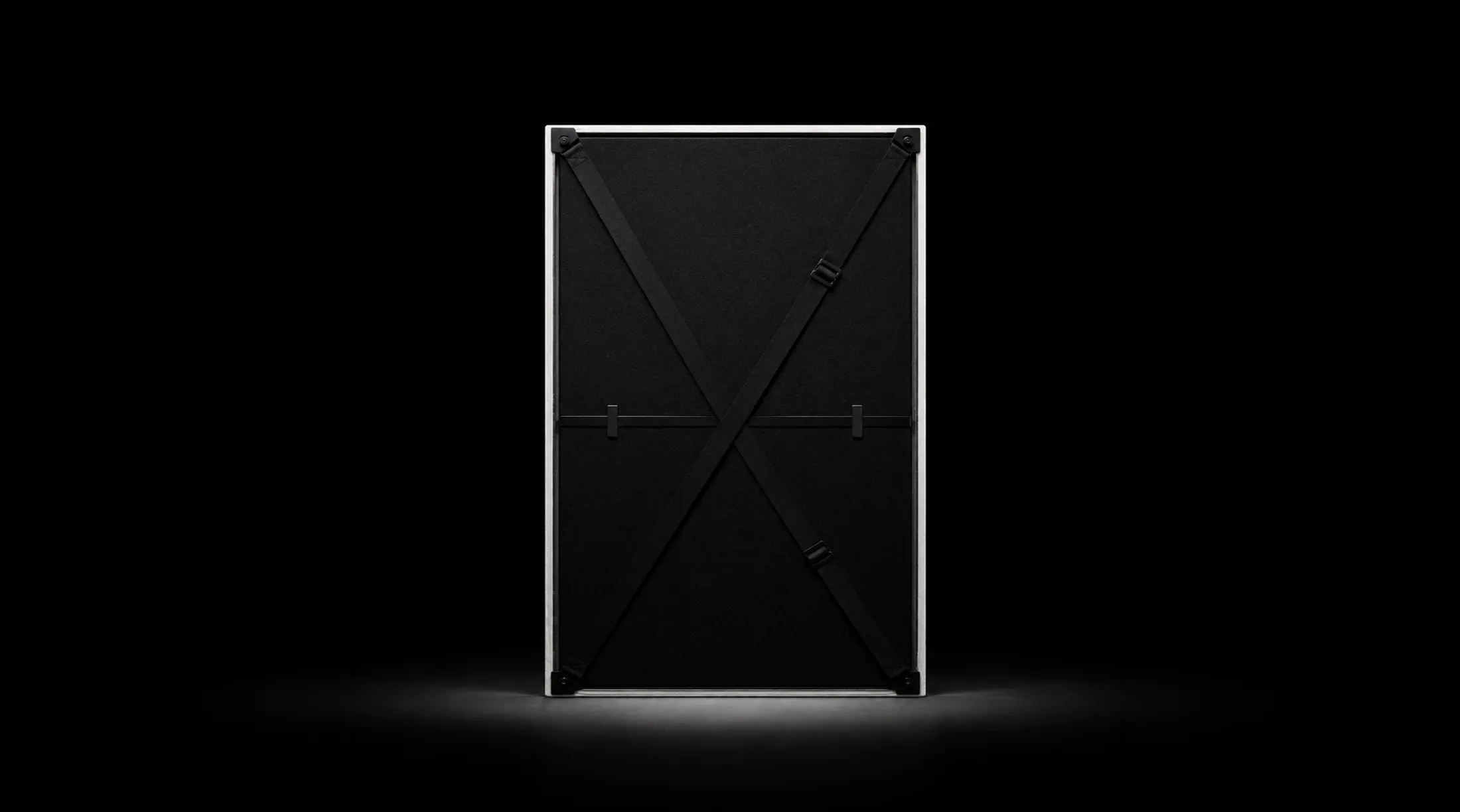

AIR shown from the textile face and from the rear, with its black frame and cross-bracing visible

Shared mounting geometry

One mount
Every configuration

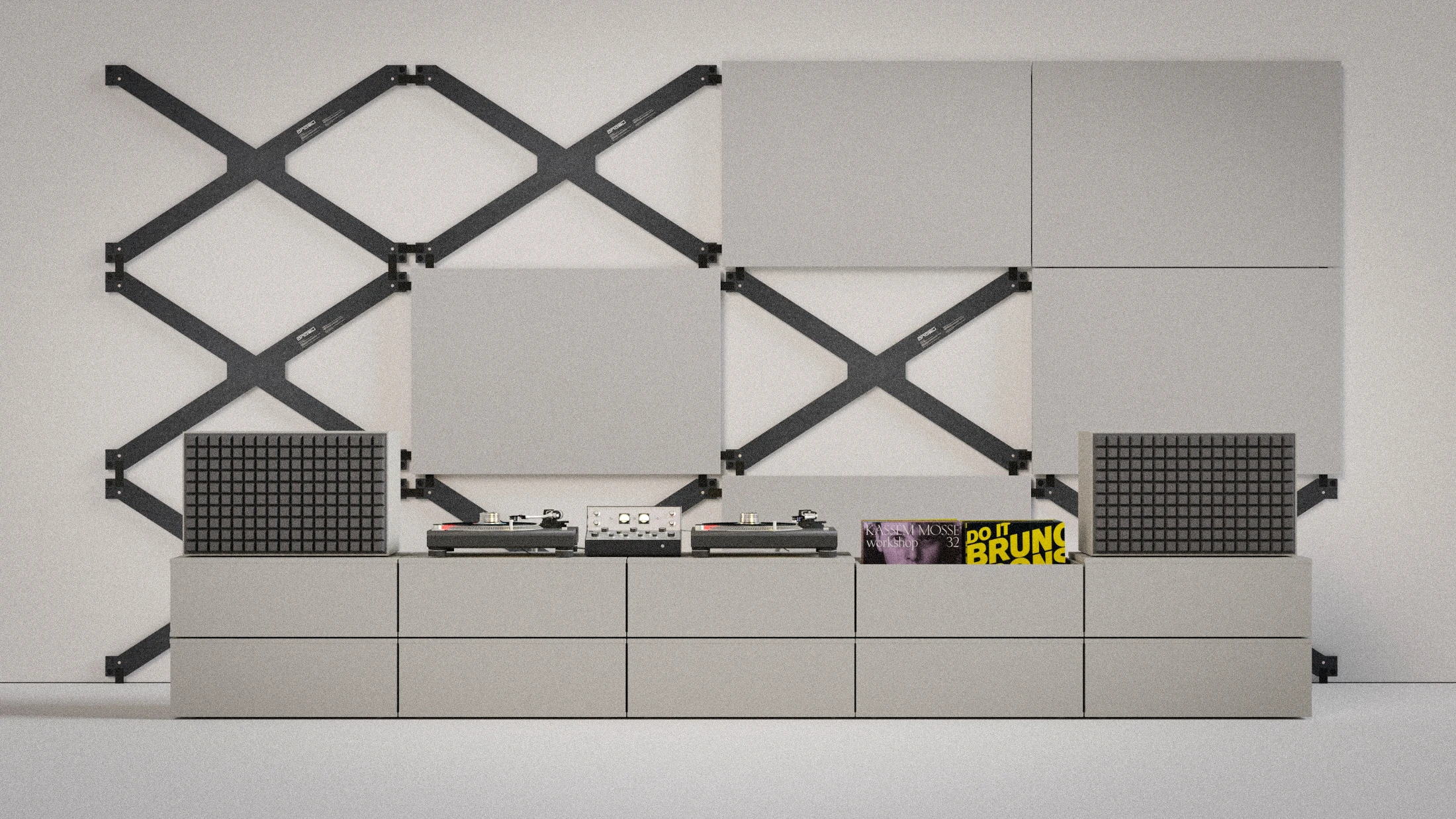

MOUNT extends into a grid, side by side and stacked, in portrait or landscape. Adjacent AIR panels keep a 4 mm joint in both directions. Two AIR panels in landscape are as wide as three in portrait. MOUNT supports AIR, STUDIO 100 and STUDIO 200.

Everything
in one bag

AIR, MOUNT, template and tools. Ready to fit together.

AIR covered in the selected textile — **AIR**Covered in the selected textile

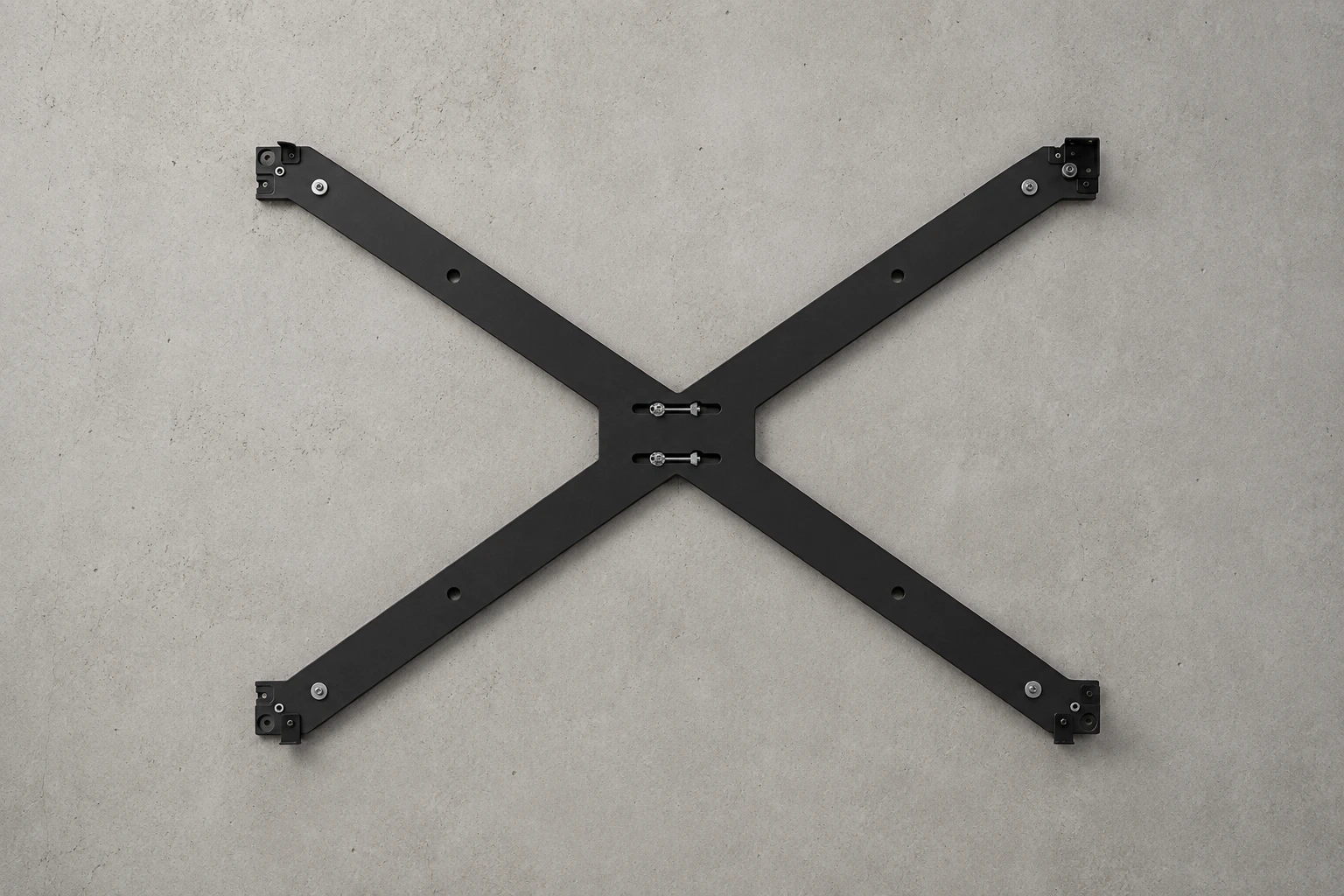

MOUNT, supplied with AIR. The shared PX SYSTEM™ interface. — **MOUNT**The shared PX SYSTEM™ interface

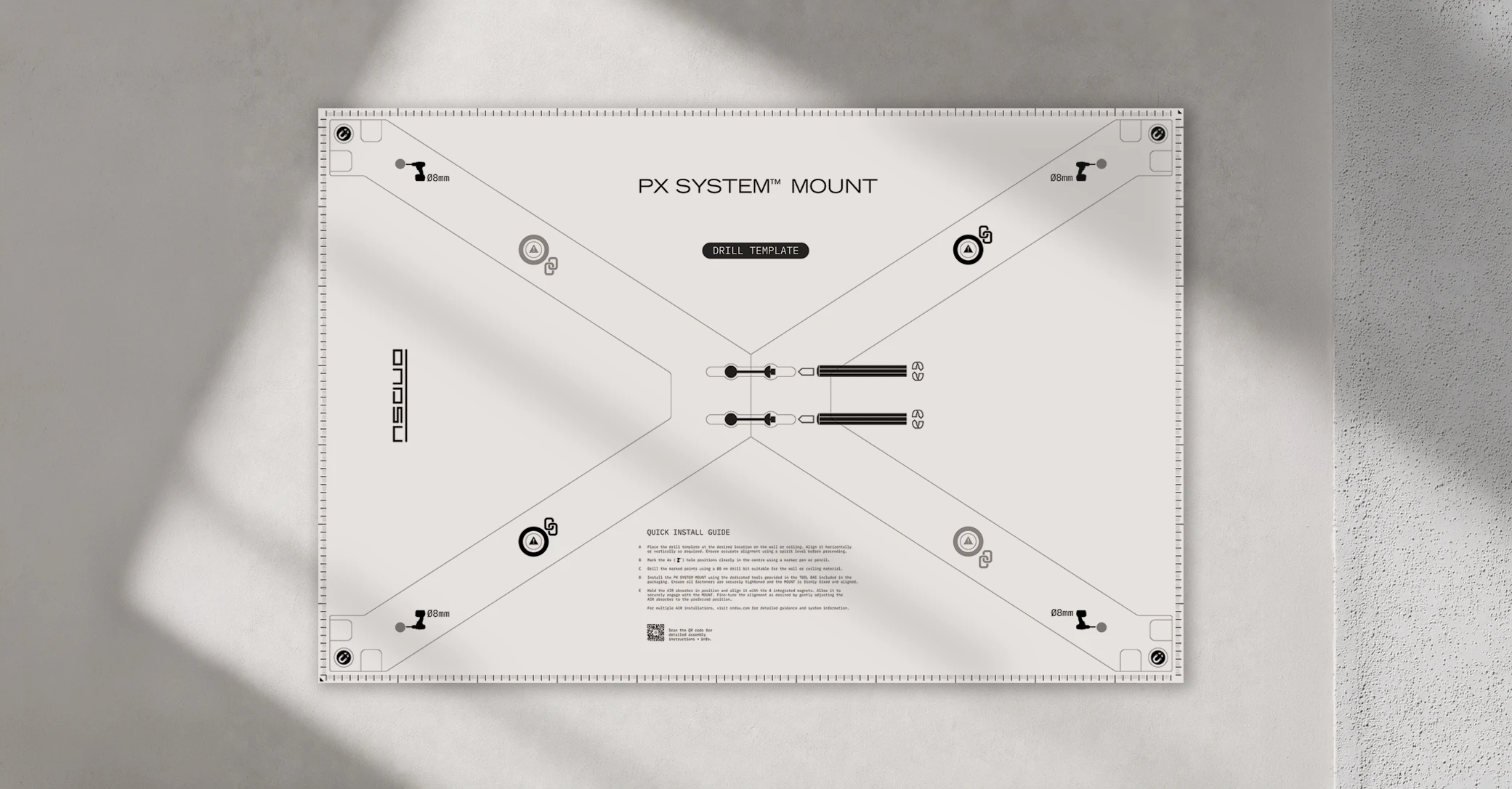

Drilling template supplied with AIR. Printed at 1:1. — **Drilling template**Printed at 1:1

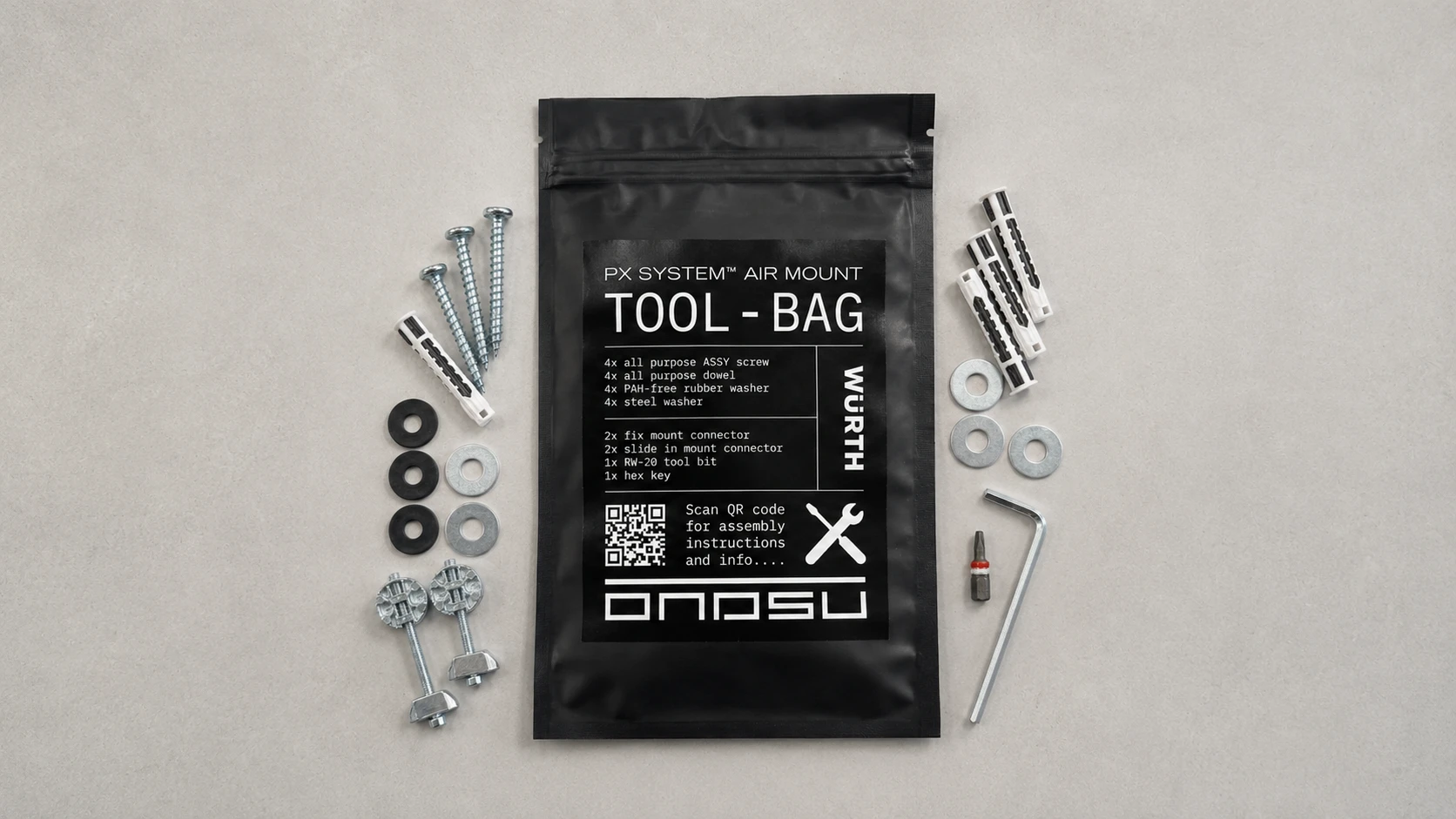

Fixings and tools supplied with AIR. Fixings by Würth. — **Fixings and tools**Fixings by Würth

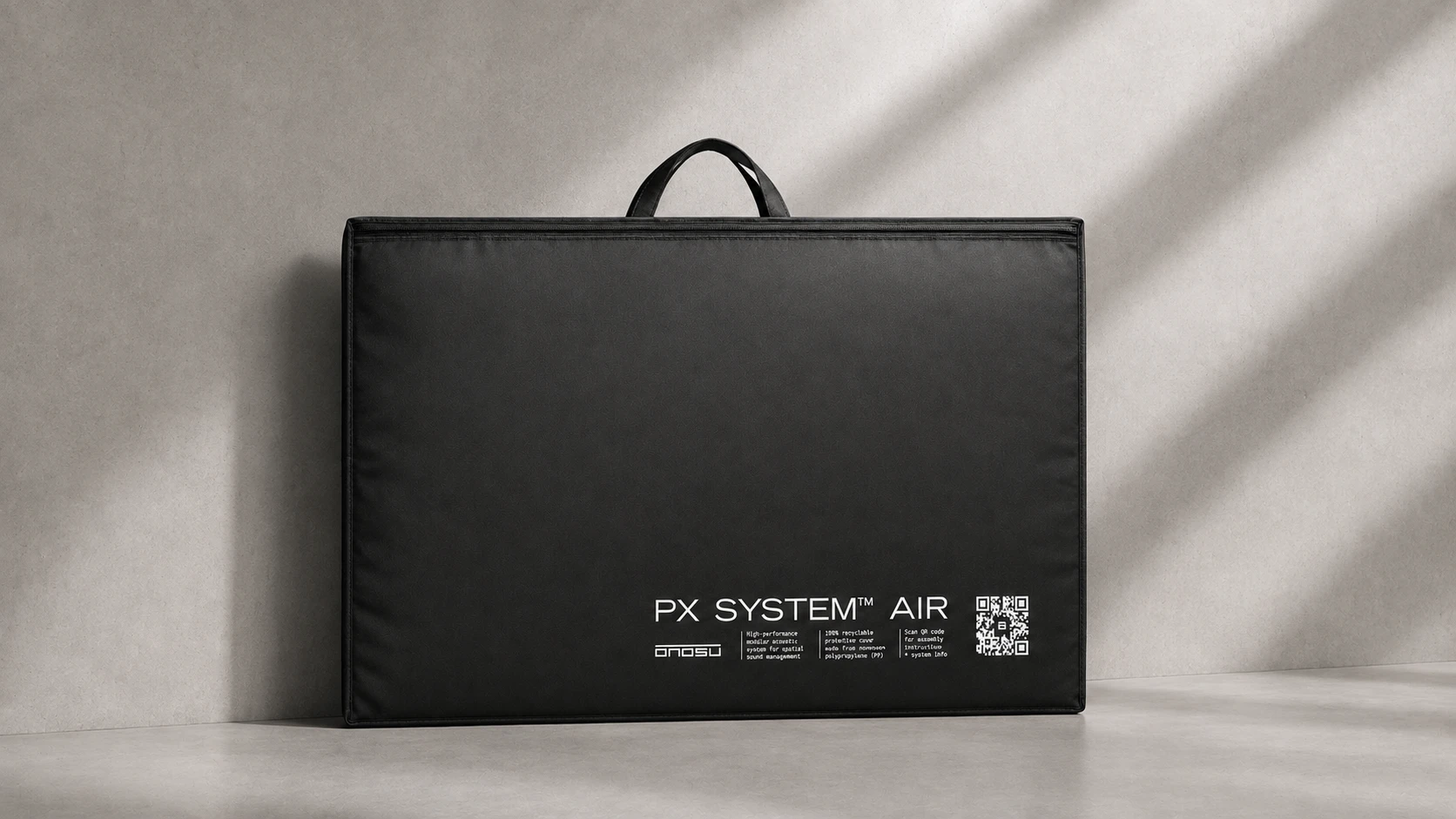

Carry bag supplied with AIR. One bag for the kit. — **Carry bag**One bag for the kit

MOUNT is included with AIR. For wall or ceiling installation, AIR attaches magnetically to MOUNT or to the front of STUDIO.

AIR is specified for your project. We confirm the textile, the configuration and the installation before anything is made.

AIR, in detail

Mid and high frequency absorption in a 22 mm panel.

Face: 1 082 × 720 mm
Weight: 3 kg
Panel depth: 22 mm
Installed depth with MOUNT: 47 mm
Frame: Extruded black anodised aluminium
Acoustic core: 20 mm CARUSO ISO-BOND 035 polyester
Attachment: Concealed magnetic interface
Compatible depth modules: STUDIO 100 or STUDIO 200

Frame: A1 non-combustible. Core: DIN 4102-1 B1, DIN EN 13501-1 B-s1, d0, approval Z-23.1.3-278. Assembly fire classification follows the selected finish and is settled at specification. No mineral wool or foam.

Start with your room

Bring your plans and material palette. We’ll develop the finish, configuration and acoustic specification around your project.

Discuss my project

Not ready to talk? Get a free Acoustic Score first.
